Kwad - 52 Inch - BS with Light
Image may not reflect selected features

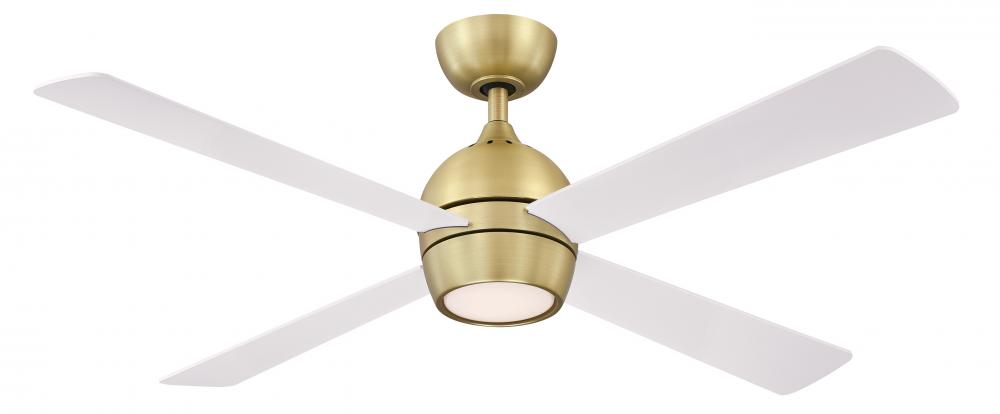

Kwad - 52 Inch - BS with Light (FP7652BS)
Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
4738 Cubic Feet per Minute
Electricity Rate
56 Watts (excluded lights)
Airflow Efficiency
85 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
FP7652BS
Dimensions
Height: 15.05"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black , Brass
Style
Traditional
Option
Dry Rated , LED
Voltage
10-99
Glass Finish or Style
Frosted , Opal
Lumens
1101-1600
Number of Blades
4 Blades
Location Rating
Dry Rated
Wattage
18w
Category
Fan-Uni
Finish
Brushed Satin Brass
Option
Dry Rated
Family
Kwad 52
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch - fan speed, light and sleep timer functions , 3533 CFM on High , Limited Lifetime Warranty , Set of 4 blades with multiple finish options and 18 watt LED light kit included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
4738
Air Flow Efficiency
85
Amperage
0.47
Blade Finish
Matte White
Blade Pitch
12
Bulb Type
18 Watt LED Module
Canopy
6.5 Dia x 2.58 H
Diameter
8.4
Down Rod Included
4.5
Electricity Used
56
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1500
Material
Wood
Motor Fan Speed
3
Motor RPM
170
Motor Size
153 X 13
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10.12
Ship Carton Length
25.91
Ship Carton Width
10.87
Ship Weight
18.23
Sold By
Each
Warranty
Limited Lifetime
Weight
16.31
Airflow Efficiency Low
156
Airflow Efficiency Medium
107
Avg Airflow Efficiency
96
Avg CFM Energy
3533
Avg Energy Use Watts
37
Avg Estimated Yearly Energy Cost
10
Avg Estimated Yearly Energy Cost on HIGH
16
Blade Finish Method
Paper Overlay
Blade Material
Wood
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.5 Dia
Canopy Height
2.58 H
Cap Included
No
Carton Cubic Feet
1.65
Cartons Per Unit
1
Case Height
10.12
Case Length
25.91
Case Quantity
1
Case Weight Pounds
18.23
Case Width
10.87
CEC Uploaded
Yes
Ceiling To Blade Edge
12.27
Ceiling To Bottom
15.05
CFM Low
2168
CFM Medium
3677
Compatible Accessories
CCK8002BSW, DR1-12BS, DR1-18BS, DR1-24BS, DR1-36BS, DR1-48BS, DR1-60BS, DR1-72BS, DR1-CPBS, SCB1-52
Compatible Controls
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls
CWRL4LA, CWRL4WH, WC2WH, WR501WH
Country of Origin
China
CRI
90
Current Draw High
0.47
Current Draw Low
0.24
Current Draw Medium
0.38
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Dry Rated
Yes
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
8.4
Included Control
TR500
Included Control Type
Handheld
Leadwire
54
Light Kit Energy Star
No
Max Ceiling Slope
27
Max Watt
56
Maximum Slope Degree
27
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
4
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
170
RPM Low (II)
77
RPM Medium (IV)
127
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 Hz
Watts Low
14
Watts Medium
34
Watts Per Bulb
18


Other Details:
  • 3 Speed Ac Motor With Reverse Switch - Fan Speed, Light And Sleep Timer Functions
  • 3533 Cfm On High
  • Limited Lifetime Warranty
  • Set Of 4 Blades With Multiple Finish Options And 18 Watt Led Light Kit Included
  • Tr500 Handheld Remote With 23a Battery Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Recommended Items
Call for Price
Qty:
BASE PRICE:
$
360
95
/ / 1
($360.95 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 259 items available.
  • More Items available 05/05/2025.
