Item Description

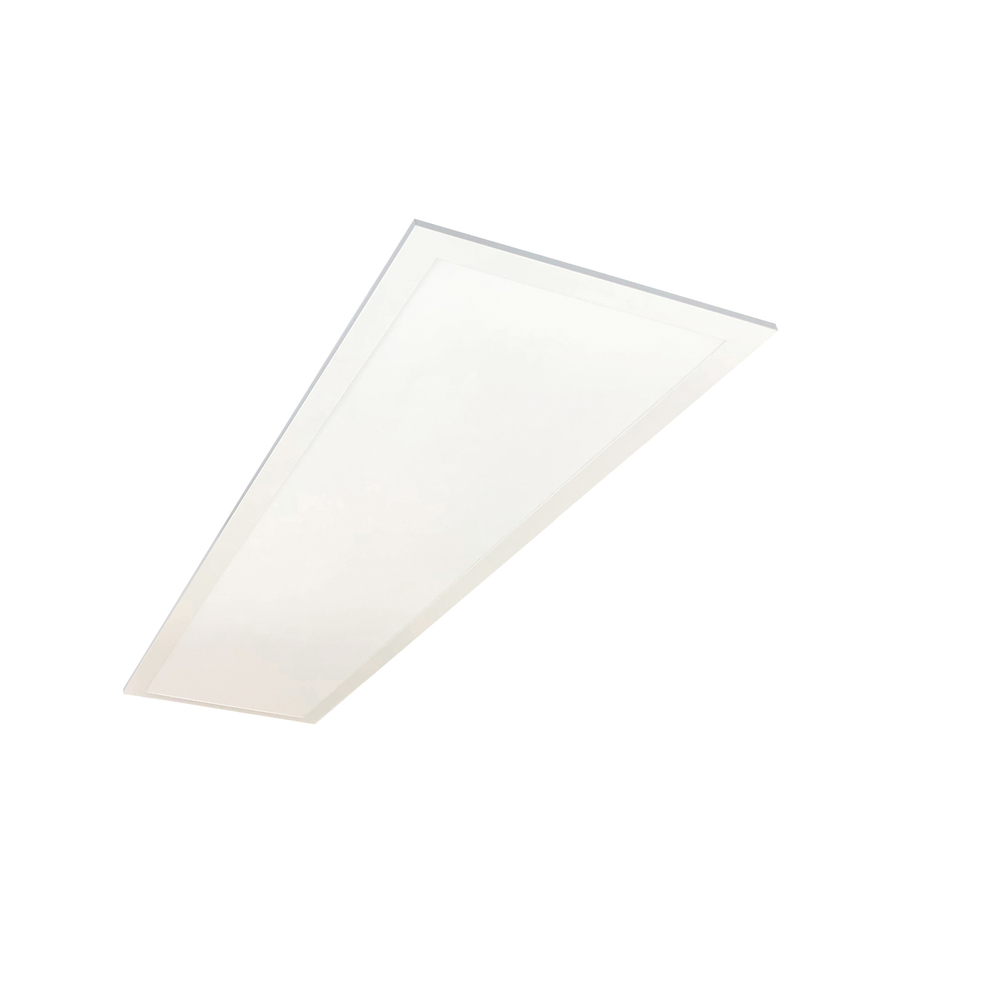

1'x4' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Input Voltage: 120-277VAC Lumens / Wattage: 3500lm / 30W Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Emergency: Luminaire includes an emergency battery with remote test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery. Motion Sensor: Integral microwave motion sensor can detect motion under the luminaire. Sensitivity, hold time and additonal settings can be adjusted in the field. Listing: cULus Listed for Damp Locations

• Item ID: 1J780X
• Width: 12.00
• Height: 2.75
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 0
• Length: 47.75
• Lumens / Light Output: 3500lm
• Weight: 6
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• Contains Battery: N
• Country of Origin: CHN
• CRI: 80
• DLC Listed: Yes
• Master Box H: 7
• Master Box L: 51
• Master Box Qty: 2
• Master Box W: 15
• Master Box Wt.: 16
• Product Family: 1x4
• Safety Listing: cULus
• Wattage: 30W
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
2'x2' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Input Voltage: 120-277VAC Lumens / Wattage: 3500lm / 30W Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Emergency: Luminaire includes an emergency battery with remote test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery. Motion Sensor: Integral microwave motion sensor can detect motion under the luminaire. Sensitivity, hold time and additonal settings can be adjusted in the field. Listing: cULus Listed for Damp Locations

• Item ID: 1J780Y
• Width: 23.75
• Height: 2.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 0
• Length: 23.75
• Lumens / Light Output: 3500lm
• Weight: 5.8
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• Contains Battery: N
• Country of Origin: CHN
• CRI: 80
• DLC Listed: Yes
• Master Box H: 7
• Master Box L: 27
• Master Box Qty: 2
• Master Box W: 26
• Master Box Wt.: 15
• Product Family: 2x2
• Safety Listing: cULus
• Wattage: 30W
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
2'x4' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Input Voltage: 120-277VAC Lumens / Wattage: 5600lm / 45W Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Emergency: Luminaire includes an emergency battery with remote test switch. Battery operates luminaire for 90 minute emergency operation on fully charged battery. Motion Sensor: Integral microwave motion sensor can detect motion under the luminaire. Sensitivity, hold time and additonal settings can be adjusted in the field. Listing: cULus Listed for Damp Locations

• Item ID: 1J780Z
• Width: 23.75
• Height: 2.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 0
• Length: 47.75
• Lumens / Light Output: 5600lm
• Weight: 1.55
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• Contains Battery: N
• Country of Origin: CHN
• CRI: 80
• DLC Listed: Yes
• Master Box H: 7
• Master Box L: 51
• Master Box Qty: 2
• Master Box W: 26
• Master Box Wt.: 27
• Product Family: 2x4
• Safety Listing: cULus
• Wattage: 45W
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
2'x4' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Input Voltage: 120-347VAC Lumens: Selectable Lumens (4602lm to 5707lm) Wattage: Selectable Wattage (36W to 45W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Listing: cULus Listed for Damp Locations

• Item ID: 1HR1PW
• Width: 23.75
• Height: 1.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 26
• Length: 47.75
• Lumens / Light Output: Selectable Lumens (4602lm / 5050lm / 5707lm)
• Weight: 1.55
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• Contains Battery: N
• Country of Origin: CHN
• CRI: 80
• DLC Listed: Yes
• Master Box H: 5
• Master Box L: 51
• Master Box Qty: 2
• Master Box W: 26
• Master Box Wt.: 26
• Product Family: Panel
• Safety Listing: cULus
• Wattage: Selectable Wattage (36W / 40W / 45W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
2'x2' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Input Voltage: 120-347VAC Lumens: Selectable Lumens (2655lm to 3759lm) Wattage: Selectable Wattage (20W to 30W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Listing: cULus Listed for Damp Locations

• Item ID: 1HR1PT
• Width: 23.75
• Height: 1.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 15
• Length: 23.75
• Lumens / Light Output: Selectable Lumens (2655lm / 3127lm / 3759lm)
• Weight: 5.75
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• Contains Battery: N
• Country of Origin: CHN
• CRI: 80
• DLC Listed: Yes
• Master Box H: 5
• Master Box L: 27
• Master Box Qty: 2
• Master Box W: 26
• Master Box Wt.: 15
• Product Family: Panel
• Safety Listing: cULus
• Wattage: Selectable Wattage (20W / 25W / 30W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
Surface mount frame mounts over an existing junction box and the panel with emergency battery slides into place. Surface mounting frame extends only 4.33" from the ceiling. Not compatible with NPDBL-PKW pendant kit. Note: Junction box must be off center frame. Finish: White Compatible Luminaires: NPDBL-E24, NPDBLSW-E24

• Item ID: 1J0ZW7
• Width: 2.00
• Height: 4.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 7
• Length: 48
• Ship Carton Height: 5.25
• Ship Carton Length: 48.25
• Ship Carton Width: 2
• Weight: 6
• 6.55
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 12
• Master Box L: 49
• Master Box Qty: 10
• Master Box W: 12
• Master Box Wt.: 68
• Product Family: Accessory
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
Surface mount frame mounts over an existing junction box and the panel with emergency battery slides into place. Surface mounting frame extends only 4.33" from the ceiling. Not compatible with NPDBL-PKW pendant kit. Note: Junction box must be off center frame. Finish: White Compatible Luminaires: NPDBL-E22, NPDBLSW-E22

• Item ID: 1J0ZW6
• Width: 1.50
• Height: 4.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 5
• Length: 24.625
• Ship Carton Height: 5.125
• Ship Carton Length: 24.75
• Ship Carton Width: 2
• Weight: 3.85
• 4.5
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 12
• Master Box L: 26
• Master Box Qty: 10
• Master Box W: 12
• Master Box Wt.: 43
• Product Family: Accessory
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
Surface mount frame mounts over an existing junction box and the panel with emergency battery slides into place. Surface mounting frame extends only 4.33" from the ceiling. Not compatible with NPDBL-PKW pendant kit. Note: Junction box must be off center frame. Finish: White Compatible Luminaires: NPDBL-E14, NPDBLSW-E14

• Item ID: 1J0ZW5
• Width: 1.50
• Height: 4.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 6
• Length: 48
• Ship Carton Height: 5.25
• Ship Carton Length: 48.25
• Ship Carton Width: 2
• Weight: 5.4
• 5.85
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 12
• Master Box L: 49
• Master Box Qty: 10
• Master Box W: 12
• Master Box Wt.: 61
• Product Family: Accessory
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
1'x4' LED Backlit can be utilized in offices, conference rooms, libraries and other tasks areas where general illumination is desired. The white diffused lens optimizes output while diffusing LED diode image. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT changes the color temperature appearance. Input Voltage: 120-347VAC Lumens: Selectable Lumens (2634lm to 3678lm) Wattage: Selectable Wattage (20W to 30W) Color Temperature: Selectable CCT (3000K / 3500K / 4000K) Color Rendering Index: 80+ CRI Dimming: 0-10V Finish: White Mounting Accessories: Recessed Kit, Surface Mount Kit or Pendant Mount Kit (ordered separately) Listing: cULus Listed for Damp Locations

• Item ID: 1HQXR1
• Width: 11.88
• Height: 1.50
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 15
• Length: 47.75
• Lumens / Light Output: Selectable Lumens (2634lm / 3115lm / 3678lm)
• Weight: 5.95
• CCT: Selectable CCT (3000K / 3500K / 4000K)
• Contains Battery: N
• Country of Origin: CHN
• CRI: 80
• DLC Listed: Yes
• Master Box H: 5
• Master Box L: 51
• Master Box Qty: 2
• Master Box W: 15
• Master Box Wt.: 15
• Product Family: Panel
• Safety Listing: cULus
• Wattage: Selectable Wattage (20W / 25W / 30W)
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories

Item Description
Surface mount frame mounts over an existing junction box and the panel slides into place. Surface mounting frame extends only 2.5" from the ceiling. Can be used with NPDBL-PKW pendant kit. Note: Junction box must be off center frame. Finish: White Compatible Luminaires: NPDBL-E14, NPDBLSW-E14

• Item ID: 1HQUX2
• Width: 1.38
• Height: 2.25
• Finish: White
• Category: Panel
• Product Line: LE24
• Est. Shipping Wt.: 2
• Length: 48
• Ship Carton Height: 2.75
• Ship Carton Length: 48.75
• Ship Carton Width: 1.875
• Weight: .85
• 1.85
• Contains Battery: N
• Country of Origin: CHN
• DLC Listed: No
• Master Box H: 7
• Master Box L: 50
• Master Box Qty: 8
• Master Box W: 9
• Master Box Wt.: 17
• Product Family: Accessory
• Standard Category: Recessed Ltg.
• Standard Subcategory: Recessed Lighting Accessories
• Standard Finish: White
