Emergency LED Dual Head Self-Diagnostic w/ Battery Backup, Wet Location, 2x 2.5W / 310lm, 120-277V,
Image may not reflect selected features

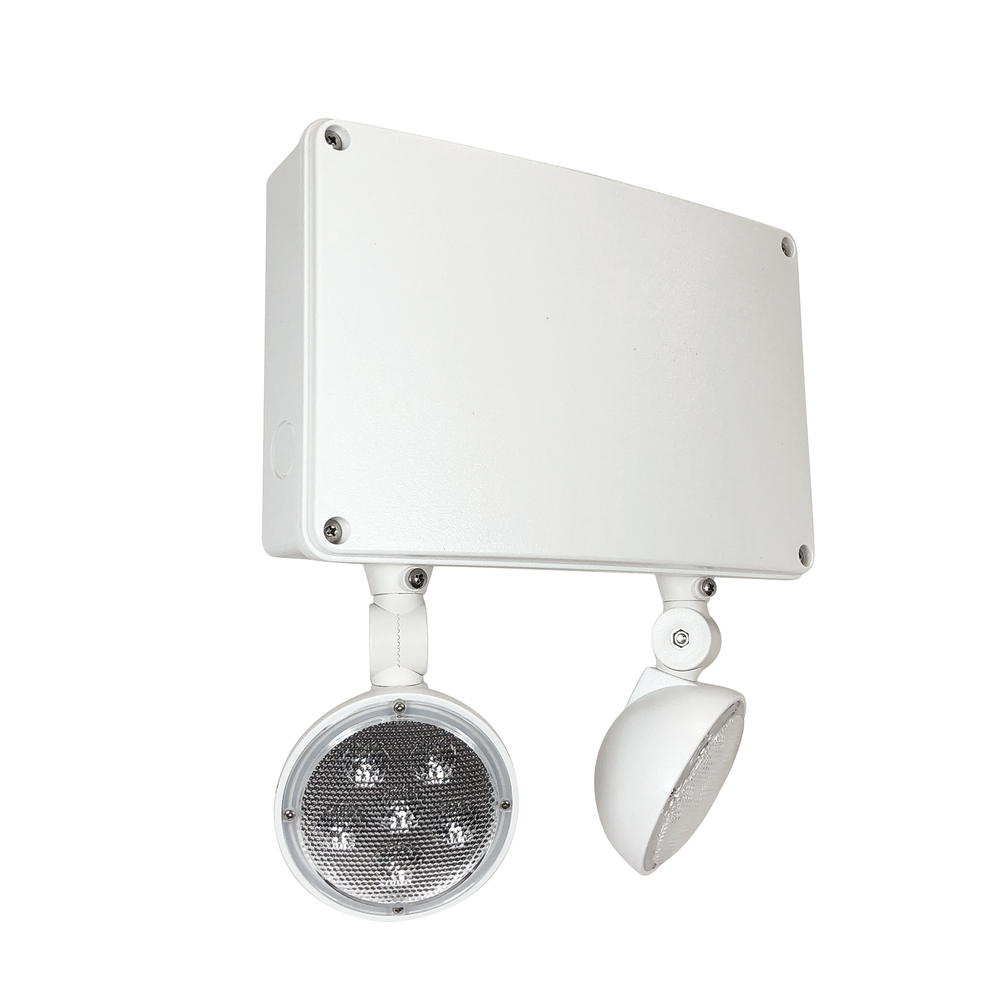

Emergency LED Dual Head Self-Diagnostic w/ Battery Backup, Wet Location, 2x 2.5W / 310lm, 120-277V, (NE-970)
Wet location rated LED emergency luminaire with two adjustable heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, LED heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Self diagnostic testing. Battery Backup.
Input Voltage: 120-277VAC
Power Consumption: 3W
Lumens / Wattage Per Head: (2) 310lm / 2.5W
Finish: White
Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating.
Battery: 7.2V Replaceable 2000mA NiCad battery
Testing: Luminaire includes manual test button for manual verification the transfer circuit and emergency heads operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and LED emergency heads. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
Emergency: During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes. Battery requires 24 hours to recharge when power is restored.
Listing: cULus Listed for Wet Locations, UL 924, NFPA 70, NFPA 101
Downloads
Product Specification
Item #
NE-970
Dimensions
Height: 11.50"
Width: 1.25"
Additional product details
Category
Utility , Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Category
Exit / Emergency
Product Line
5020
Est. Shipping Wt.
5
Length
2.75
Lumens / Light Output
620lm
Ship Carton Height
2.875
Ship Carton Length
12.25
Ship Carton Width
1.25
Weight
2.5
Contains Battery
N
Country of Origin
CHN
DLC Listed
No
Master Box H
12
Master Box L
18
Master Box Qty
6
Master Box W
14
Master Box Wt.
20
Product Family
EMERGENCY
Safety Listing
UL 924, NFPA 70, NFPA 101
Wattage
3W


Other Details:
  • 3
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
161
95
/ / 1
($161.95 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 10 items available.
